We designed and manufactured this Marylebone Access Lift which was later installed into a building in London. This building is used for medical purposes and therefore impressive disabled access is necessary in order to allow all visitors to access the building with ease and dignity.

This lift was installed into a building in Marylebone. This area is in the West End of London and is a popular tourist location. This building has many visitors and therefore by having disabled access means it can be accessed by anyone.

This design is great for many buildings, and if you think you have a building which would highly benefit from disabled access then please get in touch today.

The Marylebone Access Lift is our newest product which uses the bottom step as an independent wheelstop that is not part of the lift table.

Minimum horizontal pit length

1912mm

Minimum platform size

950mm

Maximum rise

999mm

Features

The Lift

The Marylebone Access Lift uses the bottom step as an independent wheelstop that is not part of the lift table, see On Lift Barriers for more information.

The lift table can be made to accept any cladding material, the thicker the cladding the deeper the pit depth.

Nominal Platform dimensions for this lift can very due to site requirements. However they are more than or equal to:

1408mm (l) x 1010mm (w) x 0-999mm (h)

Please see The Lifting Actuator link for more information on the mechanism used to raise and lower the stairlift.

The Stairs

The Marylebone Access Lift can accommodate up to 7 stairs, or a total rise of 999mm.

Please see the retracting stair technical page for more information

The Upper Landing Barrier

The Marylebone Access Lift can house an automatic rising barrier at the upper landing to protect the fall hazard that is created when the stairs retract, alternatively the buildings existing doors can be used.

Please see Upper Landing Barriers for more information.

User Type

The Marylebone Access Lift is for wheelchair users only. Non wheelchair users are often presented with a wheelchair to travel whilst seated on this wheelchair platform stair lift. Please see on lift barriers for more information.

System Requirements

The Marylebone Access Lift houses a solid stainless steel skirt below the lift. Please see Concealing the underside of the lift for more information.

For details on the power supply please see the lift power supply.

For general details on the pit depth please see the lift pit.

If the surrounding area presents a crush zone the lift table can be fitted with safety edges to detect an obstruction. Please see Crush hazards surrounding the moving lift for more information.

Please click on the The Sesame Stair Lift Controls for more information on the controls for this style of lift.

Variations To The Lift

The upper landing rising barrier can be replaced with an automatic gate as seen here: Regent Wheelchair Platform Stairlift

The permanently fixed on-lift button post can be upgraded to a rising button post that rises through the lift platform when the stairs retract. The post then retracts completely out of site when not in use. This system with an upper landing rising barrier rather than the gate can be seen here: Knightsbridge Stair Lift.

The permanently fixed on-lift button post can be replaced with a removable hand held post as seen here: Kensington Stairlift in London 1052.

If the pit depth is an issue the Sesame Thames Stair Lift sits within a pit depth of 160mm + cladding thickness.

If the horizontal pit depth is an issue then the Sesame Victoria Stair Lift with vertically retracting stairs may be a solution.

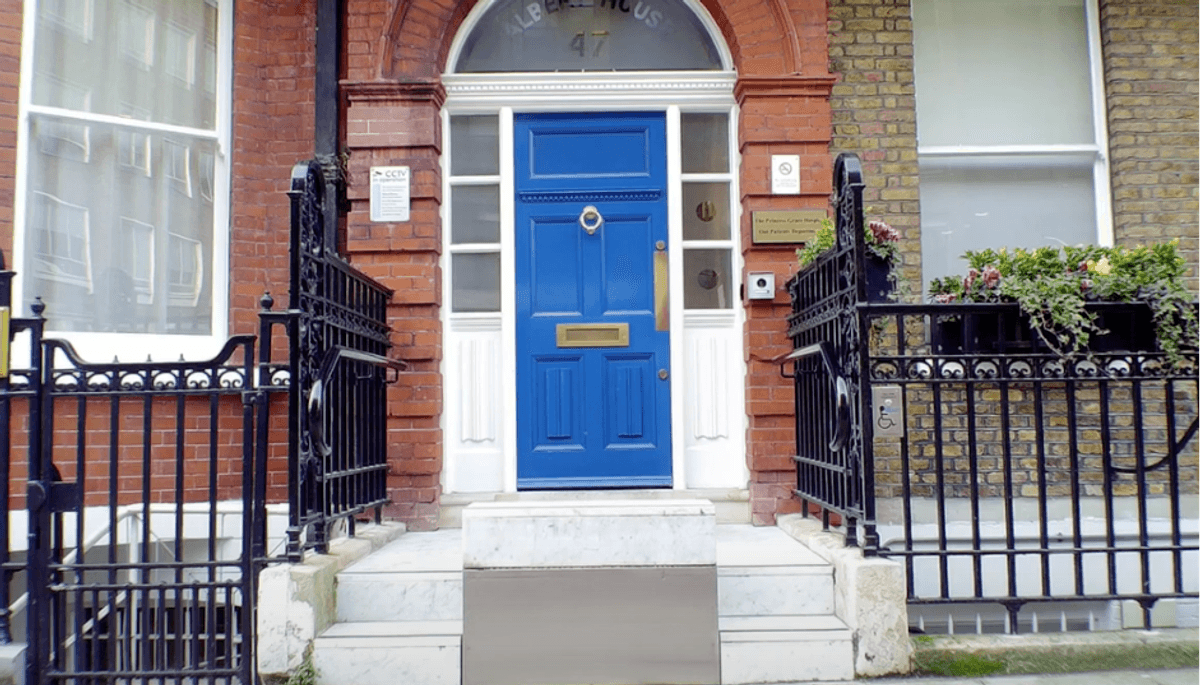

Marylebone Access Lift In London
