Hidden Lift Options for Listed Building Entrance in Manchester

Key Takeaways

• A 340mm rise at a listed building entrance can often be solved without a long external ramp.
• The deciding constraint is usually not planning consent first, but pit depth, drainage and underground services.
• If the entrance must remain the main front door for everyone, the solution changes (steps still need to exist).
• A retracting stair lift can preserve heritage aesthetics, while a traversing lift can reduce pit depth demands.
• “Shallow pit” often means a larger footprint, not an easier build.

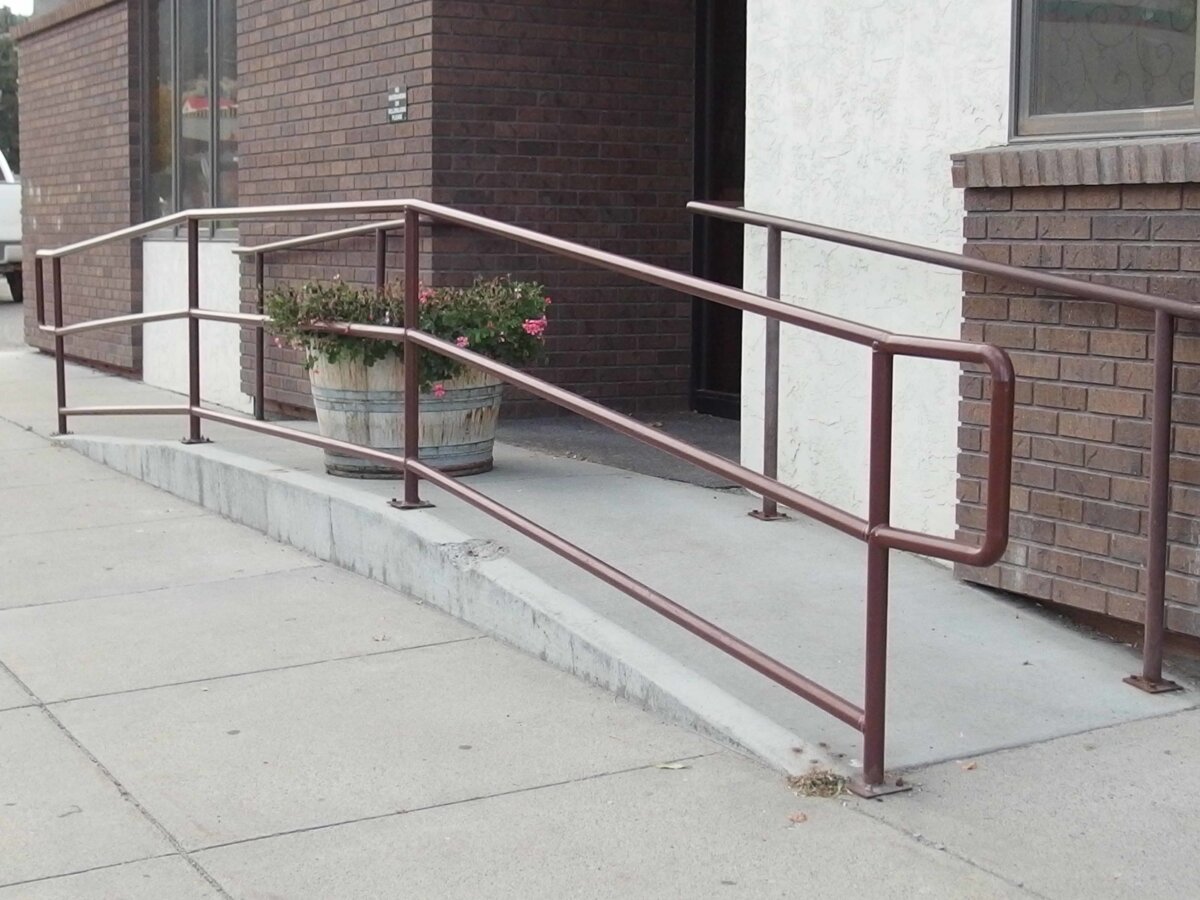

Introduction: When a ramp feels like the wrong answer

A design team reviewing a Grade II listed building entrance in Manchester wanted to remove the need for an external ramp. The entrance had a level difference of around 340mm, the pavement was tight, and the entrance zone sat above a basement with services running beneath the frontage.

The goal was straightforward: create step-free access that feels like the main entrance, not a separate route, and do it in a way that respects the building.

For context, these two Knowledge Hub pages expand the wider “no ramp” decision logic and are useful companions for architects and access leads:

• When a ramp isn’t feasible: heritage lift alternatives
• Wheelchair lift for entrance steps (no ramps)

Authority and experience: why these constraints matter in real projects

Sesame Access has engineered bespoke platform lifts for heritage and planning-sensitive buildings across the UK for over 30 years, with solutions aligned to the realities of listed building constraints and access expectations under UK regulations.

In practical terms, “heritage compliance” is rarely a single approval checkbox. Most projects succeed or fail on whether the engineering can solve the invisible risks first: pit depth, drainage, slab structure, underground services and safe step geometry.

Problem: 340mm rise, tight pavement, basement below

Solution: Choose a lift strategy that keeps the entrance usable for everyone

This enquiry had four essential requirements that shaped the solution direction:

• The rise was around 340mm at the centre point.
• The pavement/forecourt zone was constrained and not ideal for a long ramp.
• There was a basement below, so pit formation and water management needed careful planning.
• It had to remain the main entrance, so steps still needed to exist for general foot traffic.

The four ramp-free lift options considered

Option 1: A simple front-mounted platform for step-free access

Where an entrance is not required to function as the main pedestrian route, a simpler platform strategy can work, similar to The People’s Lift.

This approach can be cost-effective when:

• the lift is primarily a wheelchair route, and
• pedestrian steps are not required as part of the same opening.

In this enquiry the entrance was confirmed as the main front door, so steps were still needed. That pushed the design toward integrated step solutions.

Option 2: Integrated retracting stair solution for a “normal steps” appearance

For main entrances where aesthetics and heritage integration are non-negotiable, a retracting stair solution is often the cleanest result. This strategy aligns with the Wellington Lift.

This strategy is typically chosen when:

• you want the entrance to read as normal steps when not in use
• you need a high-quality architectural finish at the threshold
• you can accommodate a deeper pit and drainage planning

Budget typically sits at the higher end for integrated retracting stair solutions because the mechanism is engineered into the stairs and finished as architectural fabric.

Option 3: Traversing platform lift (shallow pit variant) when the basement limits depth

A traversing lift can be the better match when the entrance sits above a basement, because it can reduce the need for a deep pit under the primary step zone. This option aligns with the Traversing Lift.

In simple terms, the lift platform starts in front of the steps and then moves up and across.

This is often the right direction when:

• the basement constrains the maximum pit depth
• underground services reduce where a pit can physically go
• you need flexibility in footprint and geometry

The trade-off is important: shallower pit versions often become wider/longer to achieve the same rise safely.

Option 4: Traversing platform lift (deeper pit variant) for a smaller footprint

If you can achieve a deeper pit, the traversing platform can often become shorter and narrower, reducing the footprint impact on the forecourt.

This is one of the most practical trade-offs in ramp replacement design: more depth can reduce the platform footprint and simplify the entrance geometry, but increases structural and waterproofing complexity above basements.

Product Integration Summary

Decision framework: is a platform lift the right choice for your entrance?

When a ramp-free lift strategy is usually the right call

• The pavement is too tight for a compliant ramp run.
• The entrance is planning-sensitive and a ramp would harm the façade.
• A basement sits below, making ramp landings awkward or spatially wasteful.
• The entrance must remain the main front door and still include steps.
• You want a solution that looks like architecture, not an add-on.

When it may not be viable without redesign (or becomes higher risk)

• The slab over the basement cannot support the pit and loading without strengthening.
• Underground services run through the only feasible pit zone and cannot be diverted.
• Drainage cannot be managed away from the pit or waterproofing scope is constrained.
• The budget is below the threshold required for an integrated retracting stair solution.

Common misconceptions architects run into on listed building entrance lifts

Misconception 1: “Any pit depth can work if the lift is bespoke”

Bespoke engineering expands what is possible, but pit depth still dictates the mechanical envelope. If depth is reduced, something else usually grows: footprint, ramped transitions, or platform geometry.

Misconception 2: “Heritage consent is the main obstacle”

Consent matters, but the decisive constraints are often structural and drainage realities, especially above basements and in dense streetscapes.

Misconception 3: “Retracting stair lifts are always the best”

Retracting stairs can be the most elegant, but a traversing platform can sometimes deliver the same access outcome with lower pit depth demands and a different cost profile.

Technical credibility: the consultative engineering phase that prevents rework

On projects like this, Sesame Access typically supports teams through a staged process:

• feasibility review of entrance drawings and rise points
• pit depth and drainage strategy discussion
• service conflict review and footprint options
• site-specific drawing pack to support design development and planning conversations
• refinement with structural engineering input where the entrance sits above basements

This makes the final concept more likely to survive design development without late-stage redesign.

Frequently Asked Questions (FAQ)

Can you replace an entrance ramp with a platform lift in a listed building?

Yes, and it is often preferable where ramp geometry harms the façade or consumes too much pavement space. The right option depends on pit depth, drainage and whether steps must remain for general access.

What pit depth is typical for ramp-free entrance platform lifts?

It varies by strategy. Shallow pit options can be around 205mm in some configurations, while integrated retracting stair solutions often need deeper pits and more drainage planning.

What if there is a basement under the entrance steps?

That is common, and it changes the engineering. The team must validate slab structure, waterproofing/tanking scope and how drainage is managed away from the pit.

What if underground services run under the pavement or forecourt?

Services can restrict where a pit can go. In those cases, a different lift strategy or a footprint adjustment may be required, which is one reason early feasibility is valuable.

Is a retracting stair lift always the best-looking solution?

Often yes for a main entrance, but not always. A traversing platform can sometimes reduce pit depth demands and still deliver a clean frontage, depending on geometry.

What is the best wheelchair lift for entrance steps with no ramp space?

Where ramps are not feasible, designers usually compare integrated step lifts with traversing platforms. Start by measuring rise, confirming pit depth limits, then evaluate whether the entrance must remain a shared pedestrian route.

Can you install a hidden platform lift on a narrow pavement in a city centre?

Sometimes, but it depends on footprint, safeguarding clearances and whether the forecourt is private. If the space is public highway, the strategy changes significantly.

Do shallow pit platform lifts work in listed buildings?

They can, but shallow pits often increase platform footprint. The design team should validate that the larger platform geometry still fits the entrance layout and heritage intent.

Traversing platform lift vs retracting stair lift for heritage entrances

Retracting stair lifts prioritise visual integration at the step line. Traversing platforms prioritise pit depth flexibility and can reduce under-step excavation, especially above basements.
