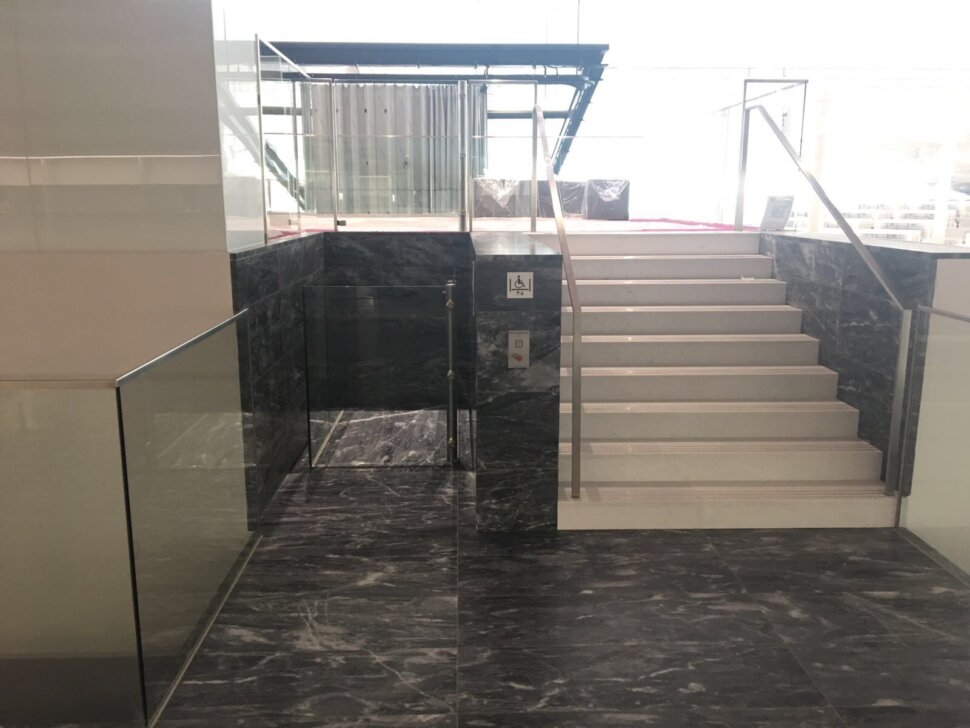

The Windsor Mobility Lift has an automatic gate at the upper landing with a fixed handrail and automatic gate on the rising platform.

The Sesame Windsor Mobility Lift
  • Minimum horizontal pit length

    500mm

  • Minimum platform size

    1633mm x 1065mm

  • Maximum rise

    2999mm

  • Minimum pit depth below lower landing

    700mm

Features

  • The Lift

    The Windsor Mobility Lift has handrails and a gate that sit 1100mm high allowing for standing and seated users. Please see On Lift Barriers for more information.

    The lift table can be made to accept any cladding material, the thicker the cladding the deeper the pit depth.

    Nominal Platform dimensions for this lift can vary due to site requirements. However, they are more than or equal to:

    1633mm (l) x 1063mm (w) 0 – 2999mm (h)

    Please see The Lifting Actuator link for more information on the mechanism used to raise and lower the mobility lift.

  • The Upper Landing Barrier

    The Windsor Mobility Lift has an automatic gate at the upper landing to protect the fall hazard that is created when the stairs retract.

    The spatial requirement for the gate can be adapted to suit the availability of the site.

    Please see Upper Landing Barriers for more information.

  • The On-Lift Barrier

    The Windsor Mobility Lifts automatic gate style can be specified by the client, so too can the surrounding handrails. Please see What barriers do I need on the Sesame chair lift? for more information.

  • System Requirements

    The Windsor Mobility Lift can come with either bellows to reduce the pit depth or a solid stainless steel skirt below the lift. Please see concealing the underside of the lift for more information.

    For details on the power supply please see the lift power supply.

    For general details on the pit depth please see the lift pit.

    If the surrounding area presents a crush zone the lift table can be fitted with safety edges to detect an obstruction. Please see Crush hazards surrounding the moving lift for more information.

    Please see The Sesame Stair Lift Controls for more information on the controls for this style of lift.

  • Variations to the Windsor Mobility Lift

    The permanently fixed on-lift handrails and gate can be replaced with rising barriers. These lower out of view and sit flush with lower landing level when not in use as seen here: Richmond Rising Platform Lift. This lift also shows a rising barrier at the upper landing as an alternative to the automatic gate.

    If the pit depth is an issue the Sesame Jubilee Disabled Access Lift sits within a pit depth of 160mm + cladding thickness. This option also shows an example of a manual gate at the upper landing.
