Sesame Disabled Access Lift

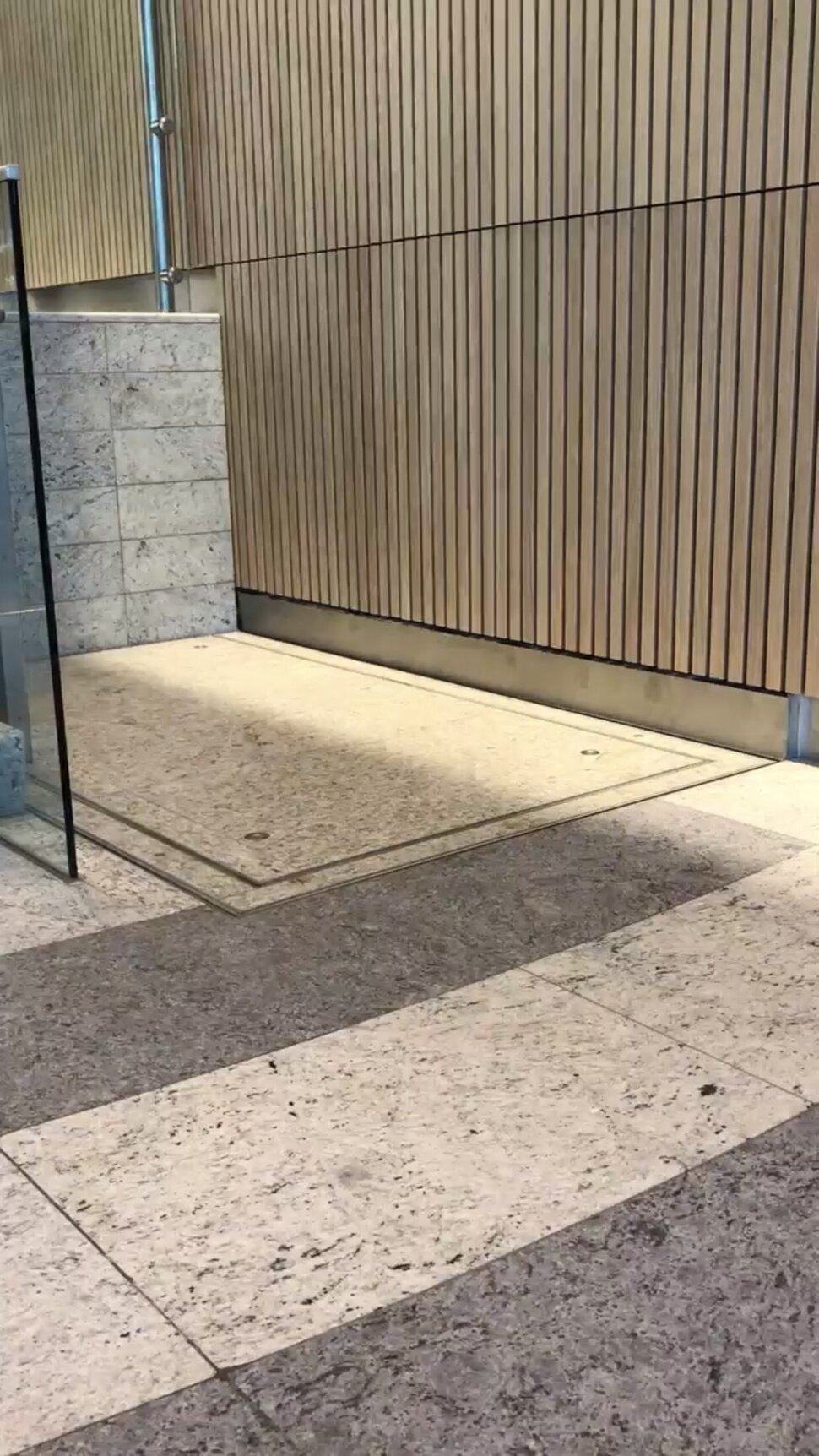

The Jubilee Disabled Access Lift is a platform lift with a manual gate at the upper landing. This lift employs our low profile mechanism for reduced pit depths.

Sesame Disabled Access Lift
  • Minimum horizontal pit length

    n/a

  • Minimum platform size

    1619mm x 1212mm

  • Maximum rise

    999mm

  • Minimum pit depth below lower landing

    184mm + cladding

Features

  • The Lift

    The Jubilee Disabled Access Lift uses our low profile wheelstop technology. A solid stainless steel toe guard rises around the platform lift to prevent wheelchairs wheels from rolling off the access lift. Please see On Lift Barriers for more information.

    The lift requires a minimal pit depth of just 160mm plus the thickness of the cladding specified.

    The lift table can be made to accept any cladding material. Note the thickness of the cladding affects the pit depth required.

    Nominal Platform dimensions for this lift can vary due to site requirements, however they have minimum dimensions of:

    1619mm(l) x 1212mm (w) x 0-750mm (h)

    If the height is greater than 750mm:

    2172mm (l) x 1212mm (w) x 751-999mm (h)

    Please click on The Lifting Actuator link for more information on the mechanism used to raise and lower the access lift.

  • The Upper Landing Barrier

    The Jubilee Disabled Access Lift houses a manual gate at the upper landing to protect the fall hazard that sits in a pit depth of just 125mm.

    Please see Upper Landing Barriers for more information

  • User Type

    The Jubilee Disabled Access Lift is for wheelchair users only. Non wheelchair users are often presented with a wheelchair to use when travelling on this lift.

    Please see on lift barriers for more information.

  • System Requirements

    The Jubilee Disabled Access Lift comes with collapsable bellows acting as the skirt below the lift. Please see Concealing the underside of the lift for more information.

    If the surrounding area presents a crush zone the lift table can be fitted with safety edges to detect an obstruction. Please see Crush hazards surrounding the moving lift for more information.

    For details on the power supply please see lift power supply

    For general details on the pit depth please see lift pit

    Please see The Sesame Stair Lift Controls for more information on the controls for this style of lift

  • Variations to the Jubilee Disabled Access Lift

    The upper landing manual gate can be replaced with an automatic gate as seen here: Windsor Lift in Qatar. This video also shows an alternative for standing users.

    The on-lift permanently fixed button post can be exchanged for a removable hand held post as seen here: Kensington Stairlift in Stoke-On-Trent 1074

    If the pit depth is not an issue the Waterloo Lift at Apple Strasbourg 1060 blends more into the lower landing when at rest as the wheelstop mechanism is a neat 3mm trim rather than the 90mm wide low profile wheelstop.

    If there is space at upper landing the manual gate can be replaced with a glass rising barrier as seen here: Richmond Rising Platform Lift
